Supervised Learning (II): Regression

import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import seaborn as sns

1. The Penguins Dataset

penguins = sns.load_dataset('penguins')
penguins

	species	island	bill_length_mm	bill_depth_mm	flipper_length_mm	body_mass_g	sex
0	Adelie	Torgersen	39.1	18.7	181.0	3750.0	Male
1	Adelie	Torgersen	39.5	17.4	186.0	3800.0	Female
2	Adelie	Torgersen	40.3	18.0	195.0	3250.0	Female
3	Adelie	Torgersen	NaN	NaN	NaN	NaN	NaN
4	Adelie	Torgersen	36.7	19.3	193.0	3450.0	Female
...	...	...	...	...	...	...	...
339	Gentoo	Biscoe	NaN	NaN	NaN	NaN	NaN
340	Gentoo	Biscoe	46.8	14.3	215.0	4850.0	Female
341	Gentoo	Biscoe	50.4	15.7	222.0	5750.0	Male
342	Gentoo	Biscoe	45.2	14.8	212.0	5200.0	Female
343	Gentoo	Biscoe	49.9	16.1	213.0	5400.0	Male

344 rows × 7 columns

sns.pairplot(penguins[["species", "bill_length_mm", "bill_depth_mm", "flipper_length_mm", "body_mass_g"]], hue="species", height=2.0)

<seaborn.axisgrid.PairGrid at 0x1b6c1237d90>

2. Data Processing

# remove missing values
penguins_regression = penguins.dropna()

# check duplicate values from dataset
penguins_regression.duplicated().value_counts()

False    333
Name: count, dtype: int64

3. Data Processiing

3.1 Splitting features

X = penguins_regression[["flipper_length_mm"]].values
y = penguins_regression["body_mass_g"].values

3.2 Feature scaling

from sklearn.preprocessing import StandardScaler

# standardize feature and target
scaler_X = StandardScaler()
scaler_y = StandardScaler()

X_scaled = scaler_X.fit_transform(X)
y_scaled = scaler_y.fit_transform(y.reshape(-1, 1)).ravel()

3.3 Splitting training and testing sets

from sklearn.model_selection import train_test_split

X_train_scaled, X_test_scaled, y_train_scaled, y_test_scaled = train_test_split(X_scaled, y_scaled, test_size=0.2, random_state=123)

X_train_orig = scaler_X.inverse_transform(X_train_scaled).ravel()
X_test_orig = scaler_X.inverse_transform(X_test_scaled).ravel()
y_train_orig = scaler_y.inverse_transform(y_train_scaled.reshape(-1, 1)).ravel()
y_test_orig = scaler_y.inverse_transform(y_test_scaled.reshape(-1, 1)).ravel()

print(f"Number of examples for training is {len(X_train_scaled)} and test is {len(X_test_scaled)}")

Number of examples for training is 266 and test is 67

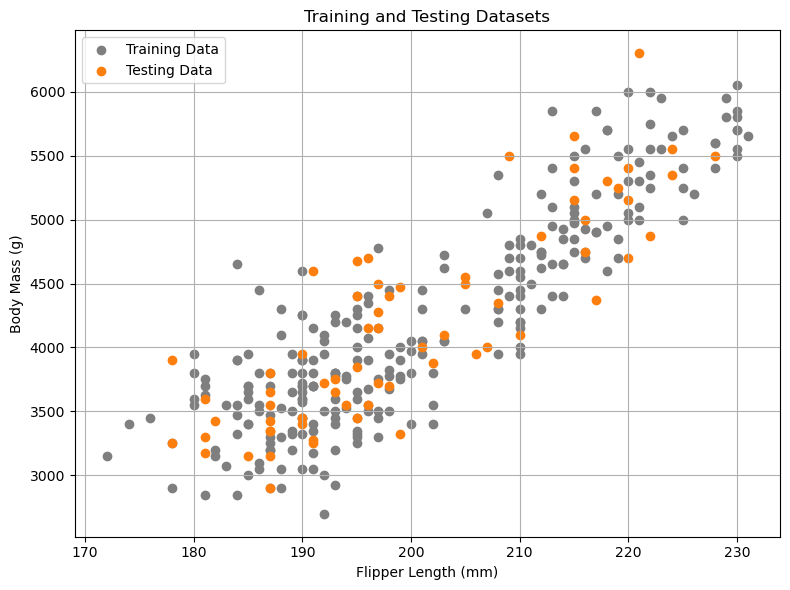

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Training and Testing Datasets")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()

4. Training Model & Evaluating Model Performance

4.1 k-Nearest Neighbors

from sklearn.neighbors import KNeighborsRegressor

knn_model = KNeighborsRegressor(n_neighbors=5)
knn_model.fit(X_train_scaled, y_train_scaled)

KNeighborsRegressor()

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

# predict on test data
y_pred_knn_scaled = knn_model.predict(X_test_scaled)
y_pred_knn = scaler_y.inverse_transform(y_pred_knn_scaled.reshape(-1, 1)).ravel()

# evaluate model performance
from sklearn.metrics import root_mean_squared_error, r2_score

rmse_knn = root_mean_squared_error(y_test_orig, y_pred_knn)
r2_value_knn = r2_score(y_test_orig, y_pred_knn)
print(f"K-Nearest Neighbors RMSE: {rmse_knn:.2f}, R²: {r2_value_knn:.2f}")

K-Nearest Neighbors RMSE: 444.09, R²: 0.68

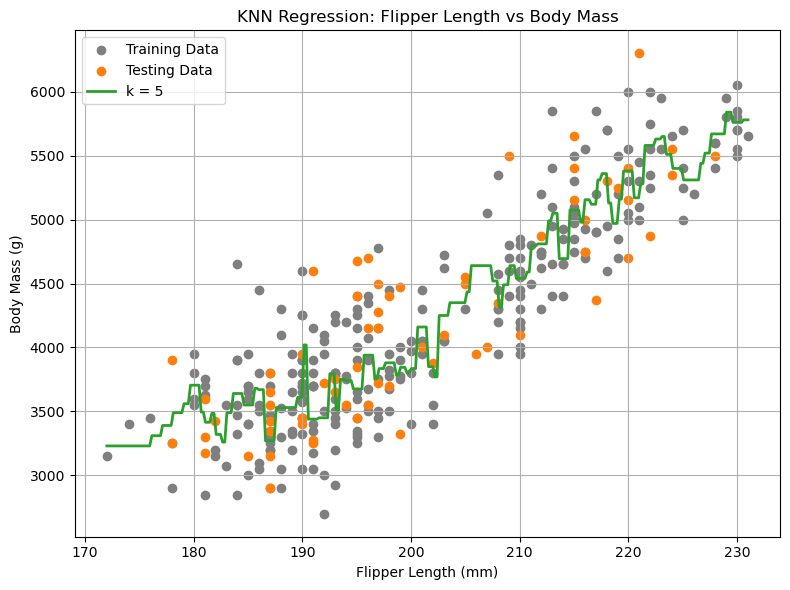

# using all predictions to plot the regression curve
X_range = np.linspace(X.min(), X.max(), 300).reshape(-1, 1)
X_range_scaled = scaler_X.transform(X_range)
y_range_scaled = knn_model.predict(X_range_scaled).flatten()
y_range = scaler_y.inverse_transform(y_range_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y=y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range, color='tab:green', label=f"k = {5}", linewidth=2)

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("KNN Regression: Flipper Length vs Body Mass")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-knn-5.png")

4.2 Linear Regression

from sklearn.linear_model import LinearRegression

linear_model = LinearRegression()
linear_model.fit(X_train_scaled, y_train_scaled)
print(linear_model.coef_, linear_model.intercept_)

y_pred_linear_scaled = linear_model.predict(X_test_scaled)
y_pred_linear = scaler_y.inverse_transform(y_pred_linear_scaled.reshape(-1, 1)).ravel()

rmse_linear = root_mean_squared_error(y_test_orig, y_pred_linear)
r2_value_linear = r2_score(y_test_orig, y_pred_linear)
print(f"Linear Regression RMSE: {rmse_linear:.2f}, R²: {r2_value_linear:.2f}")

[0.87318095] -0.0071370715694049885
Linear Regression RMSE: 411.85, R²: 0.72

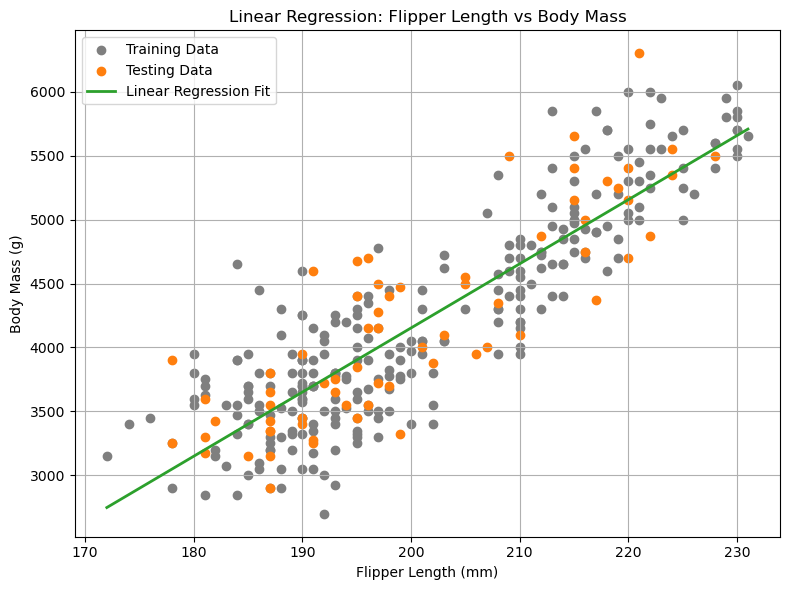

# using all predictions to plot regression curve

y_range_linear_scaled = linear_model.predict(X_range_scaled).flatten()
y_range_linear = scaler_y.inverse_transform(y_range_linear_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y=y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', label="Linear Regression Fit", linewidth=2)

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear Regression: Flipper Length vs Body Mass")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear.png")

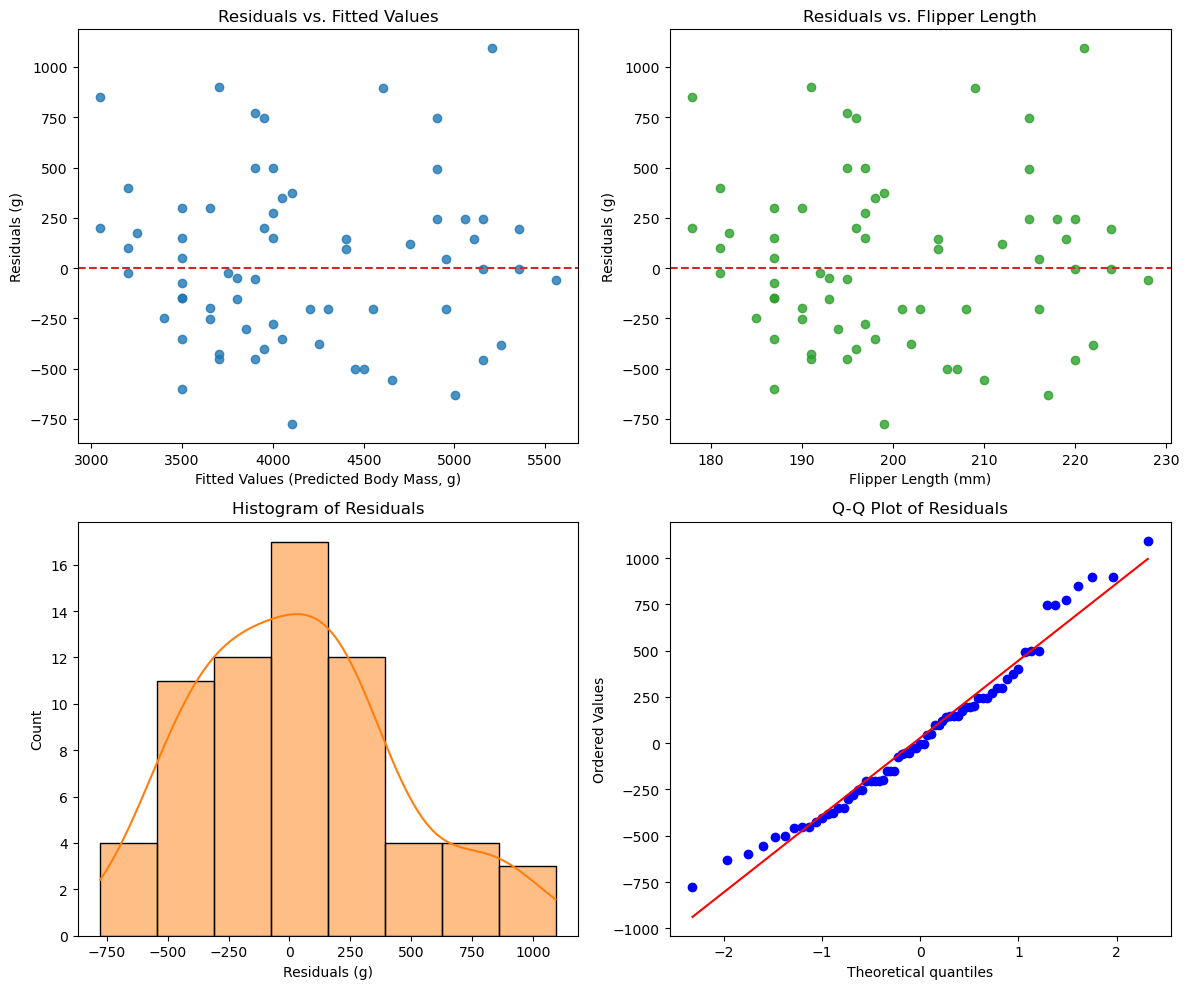

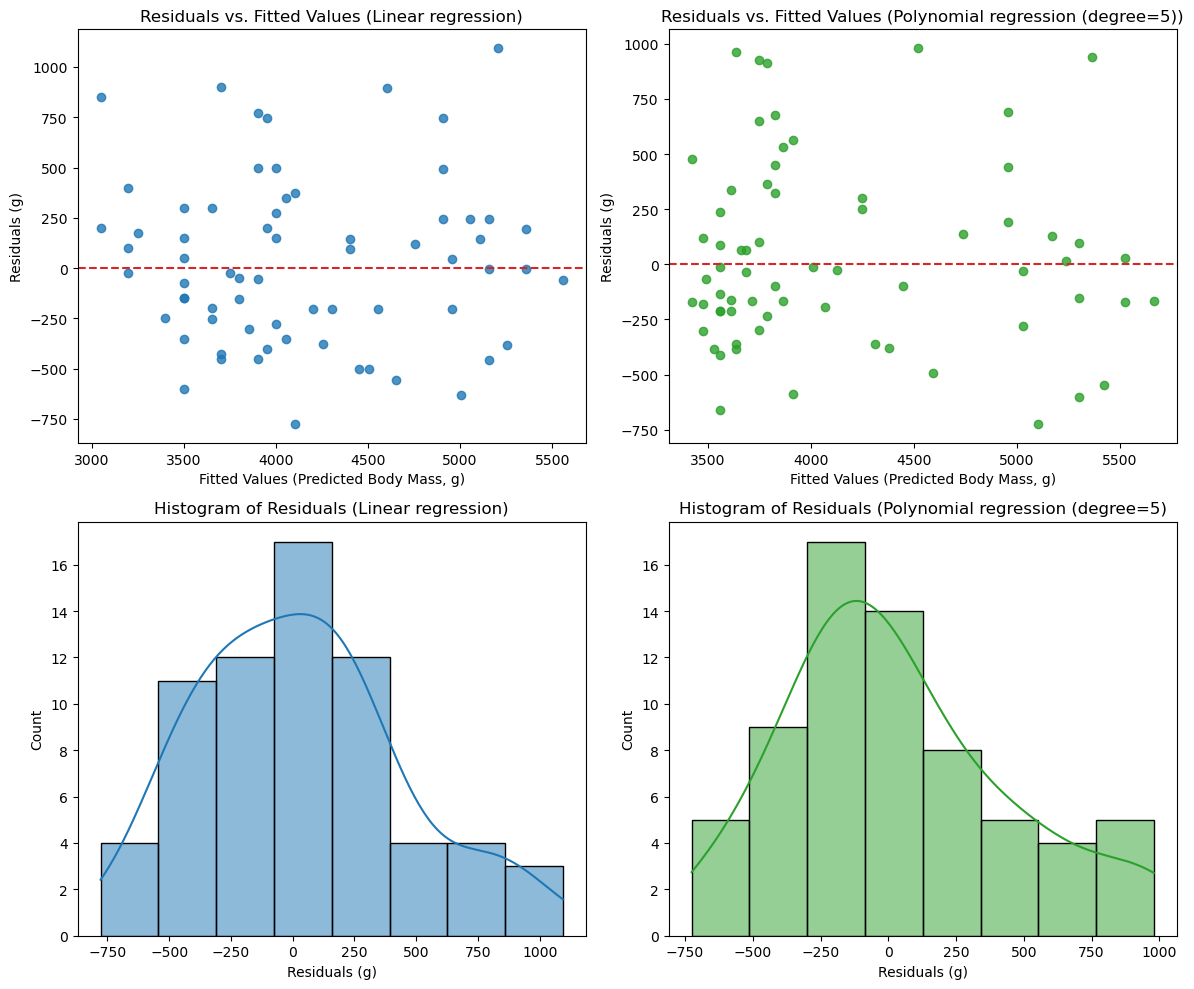

from scipy import stats

# calculate residuals
residuals = y_test_orig - y_pred_linear

# create a figure with subplots for residual analysis
plt.figure(figsize=(12, 10))

# residuals vs. fitted Values
plt.subplot(2, 2, 1)
plt.scatter(y_pred_linear, residuals, alpha=0.8, color='tab:blue')
plt.axhline(y=0, color='tab:red', linestyle='--')
plt.xlabel('Fitted Values (Predicted Body Mass, g)')
plt.ylabel('Residuals (g)')
plt.title('Residuals vs. Fitted Values')

# residuals vs. flipper length
plt.subplot(2, 2, 2)
plt.scatter(X_test_orig, residuals, alpha=0.8, color='tab:green')
plt.axhline(y=0, color='tab:red', linestyle='--')
plt.xlabel('Flipper Length (mm)')
plt.ylabel('Residuals (g)')
plt.title('Residuals vs. Flipper Length')

# histogram of Residuals
plt.subplot(2, 2, 3)
sns.histplot(residuals, kde=True, color='tab:orange')
plt.xlabel('Residuals (g)')
plt.title('Histogram of Residuals')

# the Q-Q plot for normality
plt.subplot(2, 2, 4)
stats.probplot(residuals, dist="norm", plot=plt)
plt.title('Q-Q Plot of Residuals')

plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-linear-residual-analysis.png")

# training data
y_pred_train_scaled = linear_model.predict(X_train_scaled)
y_pred_train = scaler_y.inverse_transform(y_pred_train_scaled.reshape(-1, 1)).ravel()

rmse_linear_train = root_mean_squared_error(y_train_orig, y_pred_train)
r2_linear_train = r2_score(y_train_orig, y_pred_train)

print(f"Linear Regression (Train) RMSE: {rmse_linear_train:.2f}, R²: {r2_linear_train:.2f}")

# testing data
y_pred_test_scaled = linear_model.predict(X_test_scaled)
y_pred_test = scaler_y.inverse_transform(y_pred_test_scaled.reshape(-1, 1)).ravel()

rmse_linear_test = root_mean_squared_error(y_test_orig, y_pred_test)
r2_linear_test = r2_score(y_test_orig, y_pred_test)

print(f"Linear Regression (Test)  RMSE: {rmse_linear_test:.2f}, R²: {r2_linear_test:.2f}")

Linear Regression (Train) RMSE: 387.10, R²: 0.77
Linear Regression (Test)  RMSE: 411.85, R²: 0.72

Regularized Regression (Ridge & Lasso)

To address overfitting and underfitting, regularized regression methods, such as Ridge and Lasso regression, extend linear regression by adding a penalty term to the standard cost function. This penalty discourages the model from relying too heavily on any single feature or from becoming overly complex by forcing coefficient values to be small.

• Ridge Regression (L2 regularization) shrinks coefficients towards zero but never entirely eliminates them, which is highly effective for handling correlated features and improving stability. This is common in the penguins dataset when predictors like flipper length and bill length are correlated.

• Lasso Regression (L1 regularization) can drive some coefficients to exactly zero, effectively performing automatic feature selection and creating a simpler, more interpretable model. For instance, Lasso might retain flipper length while discarding less predictive features, improving generalization.

from sklearn.linear_model import Ridge

ridge_model = Ridge(alpha=20.0)
ridge_model.fit(X_train_scaled, y_train_scaled)
print(ridge_model.coef_, ridge_model.intercept_)

y_pred_ridge_scaled = ridge_model.predict(X_test_scaled)
y_pred_ridge = scaler_y.inverse_transform(y_pred_ridge_scaled.reshape(-1, 1)).ravel()

rmse_ridge = root_mean_squared_error(y_test_orig, y_pred_ridge)
r2_value_ridge = r2_score(y_test_orig, y_pred_ridge)
print(f"Regularized Regression (Ridge) RMSE: {rmse_ridge:.2f}, R²: {r2_value_ridge:.2f}")

[0.81361728] -0.006180447493939294
Regularized Regression (Ridge) RMSE: 414.18, R²: 0.72

from sklearn.linear_model import Lasso

lasso_model = Lasso(alpha=0.2)
lasso_model.fit(X_train_scaled, y_train_scaled)
print(lasso_model.coef_, lasso_model.intercept_)

y_pred_lasso_scaled = lasso_model.predict(X_test_scaled)
y_pred_lasso = scaler_y.inverse_transform(y_pred_lasso_scaled.reshape(-1, 1)).ravel()

rmse_lasso = root_mean_squared_error(y_test_orig, y_pred_lasso)
r2_value_lasso = r2_score(y_test_orig, y_pred_lasso)
print(f"Regularized Regression (Lasso) RMSE: {rmse_lasso:.2f}, R²: {r2_value_lasso:.2f}")

[0.67844643] -0.00400953222964082
Regularized Regression (Lasso) RMSE: 437.19, R²: 0.69

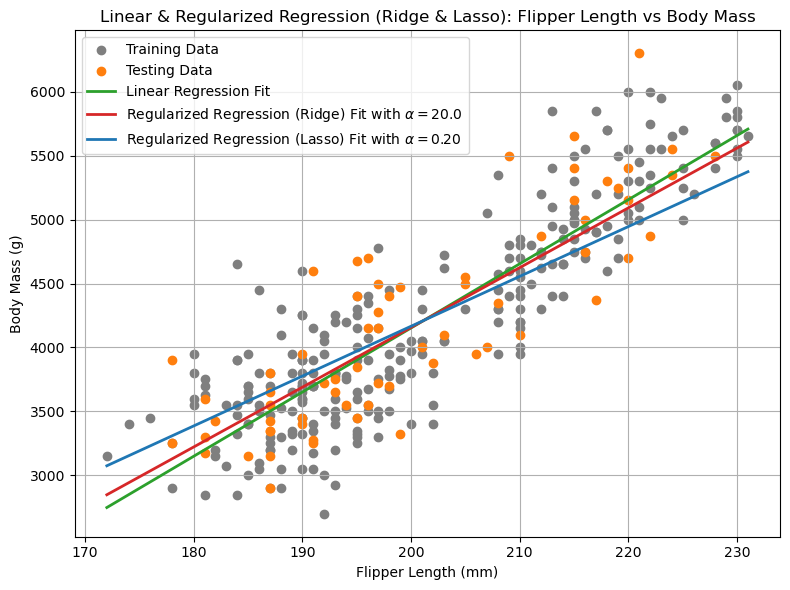

# using all predictions to plot regression curve

y_range_ridge_scaled = ridge_model.predict(X_range_scaled).flatten()
y_range_ridge = scaler_y.inverse_transform(y_range_ridge_scaled.reshape(-1, 1)).ravel()

y_range_lasso_scaled = lasso_model.predict(X_range_scaled).flatten()
y_range_lasso = scaler_y.inverse_transform(y_range_lasso_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))
plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_ridge, color='tab:red', linewidth=2, label=r"Regularized Regression (Ridge) Fit with $\alpha=20.0$")
plt.plot(X_range, y_range_lasso, color='tab:blue', linewidth=2, label=r"Regularized Regression (Lasso) Fit with $\alpha=0.20$")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear & Regularized Regression (Ridge & Lasso): Flipper Length vs Body Mass")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-ridge-lasso.png")

print("Comparison of fitting parameters:")
print(f"Linear      Regression         fitting parameters: slope = {linear_model.coef_[0]:.4f} and intercept = {linear_model.intercept_:.6f}")
print(f"Regularized Regression (Ridge) fitting parameters: slope = {ridge_model.coef_[0]:.4f} and intercept = {ridge_model.intercept_:.6f}")
print(f"Regularized Regression (Lasso) fitting parameters: slope = {lasso_model.coef_[0]:.4f} and intercept = {lasso_model.intercept_:.6f}")

print("\nComparison of RMSE and R² values:")
print(f"Linear      Regression         RMSE: {rmse_linear:.2f}, R²: {r2_value_linear:.2f}")
print(f"Regularized Regression (Ridge) RMSE: {rmse_ridge:.2f}, R²: {r2_value_ridge:.2f}")
print(f"Regularized Regression (Lasso) RMSE: {rmse_lasso:.2f}, R²: {r2_value_lasso:.2f}")

Comparison of fitting parameters:
Linear      Regression         fitting parameters: slope = 0.8732 and intercept = -0.007137
Regularized Regression (Ridge) fitting parameters: slope = 0.8136 and intercept = -0.006180
Regularized Regression (Lasso) fitting parameters: slope = 0.6784 and intercept = -0.004010

Comparison of RMSE and R² values:
Linear      Regression         RMSE: 411.85, R²: 0.72
Regularized Regression (Ridge) RMSE: 414.18, R²: 0.72
Regularized Regression (Lasso) RMSE: 437.19, R²: 0.69

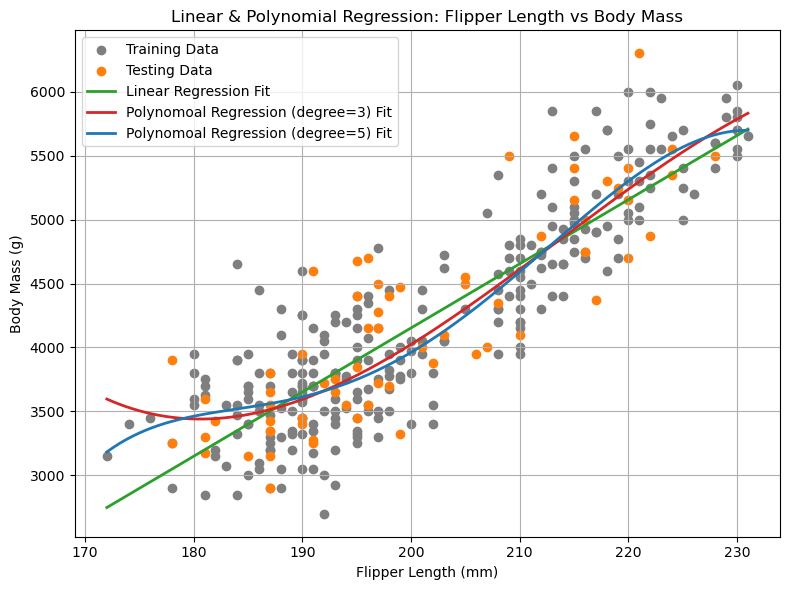

4.3 Polynomial Regression

from sklearn.preprocessing import PolynomialFeatures
from sklearn.pipeline import make_pipeline

degree3=3
poly3_model = make_pipeline(PolynomialFeatures(degree3), LinearRegression())
poly3_model.fit(X_train_scaled, y_train_scaled)
print(poly3_model.named_steps['linearregression'].coef_, poly3_model.named_steps['linearregression'].intercept_)

y_pred_poly3_scaled = poly3_model.predict(X_test_scaled)
y_pred_poly3 = scaler_y.inverse_transform(y_pred_poly3_scaled.reshape(-1, 1)).ravel()

rmse_poly3 = root_mean_squared_error(y_test_orig, y_pred_poly3)
r2_value_poly3 = r2_score(y_test_orig, y_pred_poly3)
print(f"Polynomial Regression (degree={degree3}) RMSE: {rmse_poly3:.2f}, R²: {r2_value_poly3:.2f}")

[ 0.          0.94465524  0.17823342 -0.06719099] -0.16346920517391358
Polynomial Regression (degree=3) RMSE: 407.47, R²: 0.73

degree5=5
poly5_model = make_pipeline(PolynomialFeatures(degree5), LinearRegression())
poly5_model.fit(X_train_scaled, y_train_scaled)
print(poly5_model.named_steps['linearregression'].coef_, poly5_model.named_steps['linearregression'].intercept_)

y_pred_poly5_scaled = poly5_model.predict(X_test_scaled)
y_pred_poly5 = scaler_y.inverse_transform(y_pred_poly5_scaled.reshape(-1, 1)).ravel()

rmse_poly5 = root_mean_squared_error(y_test_orig, y_pred_poly5)
r2_value_poly5 = r2_score(y_test_orig, y_pred_poly5)
print(f"Polynomial Regression (degree={degree5}) RMSE: {rmse_poly5:.2f}, R²: {r2_value_poly5:.2f}")

[ 0.          0.92465516  0.36156078 -0.0626784  -0.05545389  0.00535874] -0.2431881874018734
Polynomial Regression (degree=5) RMSE: 415.55, R²: 0.72

# using all predictions to plot regression curve

y_range_poly3_scaled = poly3_model.predict(X_range_scaled).flatten()
y_range_poly3 = scaler_y.inverse_transform(y_range_poly3_scaled.reshape(-1, 1)).ravel()

y_range_poly5_scaled = poly5_model.predict(X_range_scaled).flatten()
y_range_poly5 = scaler_y.inverse_transform(y_range_poly5_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_poly3, color='tab:red', linewidth=2, label=f"Polynomoal Regression (degree={degree3}) Fit")
plt.plot(X_range, y_range_poly5, color='tab:blue', linewidth=2, label=f"Polynomoal Regression (degree={degree5}) Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear & Polynomial Regression: Flipper Length vs Body Mass")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-poly35.png")

print("Comparison of fitting parameters:")
print(f"Linear     Regression            fitting parameters: intercept = {ridge_model.intercept_:.4f} and slope = {linear_model.coef_}")
print(f"Polynomial Regression (degree=3) fitting parameters: intercept = {poly3_model.named_steps['linearregression'].intercept_:.4f} and slope = {poly3_model.named_steps['linearregression'].coef_}")
print(f"Polynomial Regression (degree=5) fitting parameters: intercept = {poly5_model.named_steps['linearregression'].intercept_:.4f} and slope = {poly5_model.named_steps['linearregression'].coef_}")

print("\nComparison of RMSE and R² values:")
print(f"Linear     Regression            RMSE: {rmse_linear:.2f}, R²: {r2_value_linear:.2f}")
print(f"Polynomial Regression (degree={degree3}) RMSE: {rmse_poly3:.2f}, R²: {r2_value_poly3:.2f}")
print(f"Polynomial Regression (degree={degree5}) RMSE: {rmse_poly5:.2f}, R²: {r2_value_poly5:.2f}")

Comparison of fitting parameters:
Linear     Regression            fitting parameters: intercept = -0.0062 and slope = [0.87318095]
Polynomial Regression (degree=3) fitting parameters: intercept = -0.1635 and slope = [ 0.          0.94465524  0.17823342 -0.06719099]
Polynomial Regression (degree=5) fitting parameters: intercept = -0.2432 and slope = [ 0.          0.92465516  0.36156078 -0.0626784  -0.05545389  0.00535874]

Comparison of RMSE and R² values:
Linear     Regression            RMSE: 411.85, R²: 0.72
Polynomial Regression (degree=3) RMSE: 407.47, R²: 0.73
Polynomial Regression (degree=5) RMSE: 415.55, R²: 0.72

Residual analysis

plt.figure(figsize=(12, 10))

# residuals vs. fitted values (linear)
residuals = y_test_orig - y_pred_linear
plt.subplot(2, 2, 1)
plt.scatter(y_pred_linear, residuals, alpha=0.8, color='tab:blue')
plt.axhline(y=0, color='tab:red', linestyle='--')
plt.xlabel('Fitted Values (Predicted Body Mass, g)')
plt.ylabel('Residuals (g)')
plt.title('Residuals vs. Fitted Values (Linear regression)')

# residuals vs. fitted values (linear)
plt.subplot(2, 2, 2)
residuals = y_test_orig - y_pred_poly5
plt.scatter(y_pred_poly5, residuals, alpha=0.8, color='tab:green')
plt.axhline(y=0, color='tab:red', linestyle='--')
plt.xlabel('Fitted Values (Predicted Body Mass, g)')
plt.ylabel('Residuals (g)')
plt.title('Residuals vs. Fitted Values (Polynomial regression (degree=5))')

# histogram of residuals (linear regression)
residuals = y_test_orig - y_pred_linear
plt.subplot(2, 2, 3)
sns.histplot(residuals, kde=True, color='tab:blue')
plt.xlabel('Residuals (g)')
plt.title('Histogram of Residuals (Linear regression)')

# histogram of residuals (polynomial regression)
plt.subplot(2, 2, 4)
residuals = y_test_orig - y_pred_poly5
sns.histplot(residuals, kde=True, color='tab:green')
plt.xlabel('Residuals (g)')
plt.title('Histogram of Residuals (Polynomial regression (degree=5)')

plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-linear-poly5-residual-analysis.png")

4.4 Support Vector Regression (SVR)

from sklearn.svm import SVR

svr_model = SVR(kernel='rbf', gamma=0.1, C=100.0, epsilon=1.0)
svr_model.fit(X_train_scaled, y_train_scaled)

y_pred_svr_scaled = svr_model.predict(X_test_scaled)
y_pred_svr = scaler_y.inverse_transform(y_pred_svr_scaled.reshape(-1, 1)).ravel()

rmse_svr = root_mean_squared_error(y_test_orig, y_pred_svr)
r2_value_svr = r2_score(y_test_orig, y_pred_svr)
print(f"Support Vector Regression RMSE: {rmse_svr:.2f}, R²: {r2_value_svr:.2f}")

Support Vector Regression RMSE: 433.30, R²: 0.69

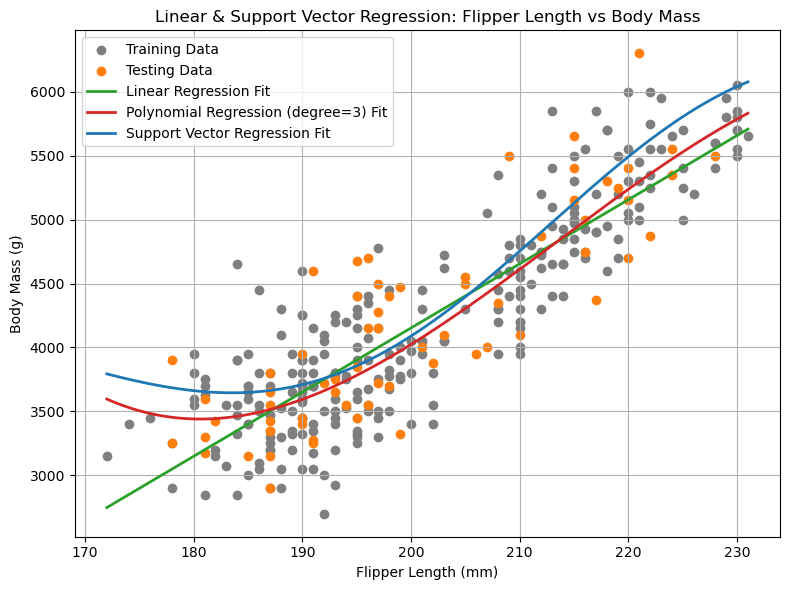

# using all predictions to plot regression curve

y_range_svr_scaled = svr_model.predict(X_range_scaled).flatten()
y_range_svr = scaler_y.inverse_transform(y_range_svr_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_poly3, color='tab:red', linewidth=2, label=f"Polynomial Regression (degree={degree3}) Fit")
plt.plot(X_range, y_range_svr, color='tab:blue', linewidth=2, label="Support Vector Regression Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear & Support Vector Regression: Flipper Length vs Body Mass")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-poly3-svr.png")

print("\nComparison of RMSE and R² values:")
print(f"Linear     Regression            RMSE: {rmse_linear:.2f}, R²: {r2_value_linear:.2f}")
print(f"Polynomial Regression (degree={degree3}) RMSE: {rmse_poly3:.2f}, R²: {r2_value_poly3:.2f}")
print(f"Support Vector Regression        RMSE: {rmse_svr:.2f}, R²: {r2_value_svr:.2f}")

Comparison of RMSE and R² values:
Linear     Regression            RMSE: 411.85, R²: 0.72
Polynomial Regression (degree=3) RMSE: 407.47, R²: 0.73
Support Vector Regression        RMSE: 433.30, R²: 0.69

Grid search & Cross-validation

from sklearn.model_selection import GridSearchCV

# define SVR model
svr_find_opt_model = SVR(kernel='rbf')

# define parameter grid
param_grid = {
    'C': [1, 10, 100, 1000],
    'gamma': [0.01, 0.1, 1, 10],
    'epsilon': [0.1, 0.5, 1.0]
}

# set up 5-fold cross-validation
grid_search = GridSearchCV(
    estimator=svr_model,
    param_grid=param_grid,
    cv=5,  # 5-fold CV
    scoring='neg_root_mean_squared_error',  # RMSE
    verbose=2,
    n_jobs=-1
)

# fit the grid search to training data
grid_search.fit(X_train_scaled, y_train_scaled)

# best parameters and score
print("Best parameters found:", grid_search.best_params_)
print("Best CV RMSE:", -grid_search.best_score_)

Fitting 5 folds for each of 48 candidates, totalling 240 fits
Best parameters found: {'C': 1000, 'epsilon': 0.1, 'gamma': 0.1}
Best CV RMSE: 0.4609639426572684

# train final model with best parameters

svr_opt_model = grid_search.best_estimator_
svr_opt_model.fit(X_train_scaled, y_train_scaled)

y_pred_svr_opt_scaled = svr_opt_model.predict(X_test_scaled)
y_pred_svr_opt = scaler_y.inverse_transform(y_pred_svr_opt_scaled.reshape(-1, 1)).ravel()

rmse_svr_opt = root_mean_squared_error(y_test_orig, y_pred_svr_opt)
r2_value_svr_opt = r2_score(y_test_orig, y_pred_svr_opt)
print(f"Support Vector Regression (OPT) RMSE: {rmse_svr_opt:.2f}, R²: {r2_value_svr_opt:.2f}")

print(f"Support Vector Regression       RMSE: {rmse_svr:.2f}, R²: {r2_value_svr:.2f}")

Support Vector Regression (OPT) RMSE: 421.54, R²: 0.71
Support Vector Regression       RMSE: 433.30, R²: 0.69

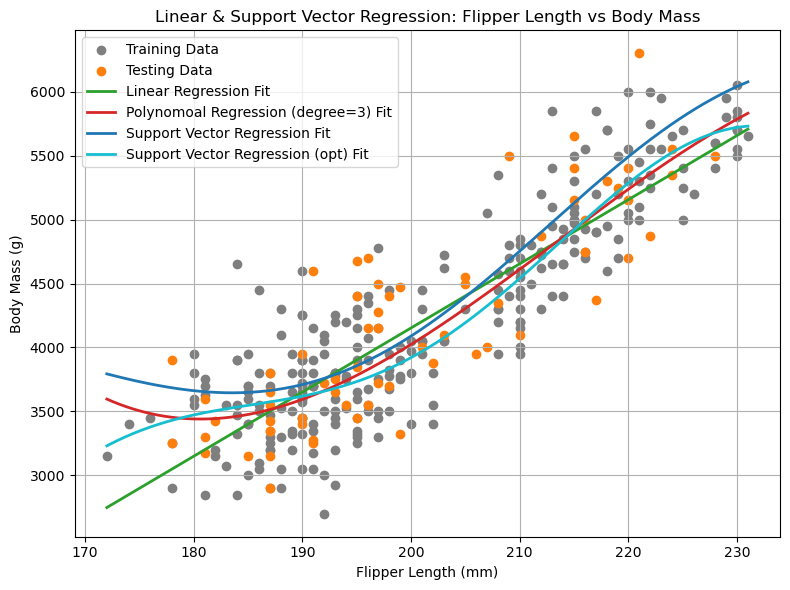

# using predictions from opt parameters to plot regression curve

y_range_svr_opt_scaled = svr_opt_model.predict(X_range_scaled).flatten()
y_range_svr_opt = scaler_y.inverse_transform(y_range_svr_opt_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_poly3, color='tab:red', linewidth=2, label=f"Polynomoal Regression (degree={degree3}) Fit")
plt.plot(X_range, y_range_svr, color='tab:blue', linewidth=2, label="Support Vector Regression Fit")
plt.plot(X_range, y_range_svr_opt, color='tab:cyan', linewidth=2, label="Support Vector Regression (opt) Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear & Support Vector Regression: Flipper Length vs Body Mass")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-poly3-svr.png")

4.5 Decision Tree

from sklearn.tree import DecisionTreeRegressor

dt3_model = DecisionTreeRegressor(max_depth=3, random_state=123)
dt3_model.fit(X_train_scaled, y_train_scaled)

y_pred_dt3_scaled = dt3_model.predict(X_test_scaled)
y_pred_dt3 = scaler_y.inverse_transform(y_pred_dt3_scaled.reshape(-1, 1)).ravel()

rmse_dt3 = root_mean_squared_error(y_test_orig, y_pred_dt3)
r2_value_dt3 = r2_score(y_test_orig, y_pred_dt3)
print(f"Decision Tree (depth=3) RMSE: {rmse_dt3:.2f}, R²: {r2_value_dt3:.2f}")

Decision Tree (depth=3) RMSE: 415.62, R²: 0.72

dt5_model = DecisionTreeRegressor(max_depth=5, random_state=123)
dt5_model.fit(X_train_scaled, y_train_scaled)

y_pred_dt5_scaled = dt5_model.predict(X_test_scaled)
y_pred_dt5 = scaler_y.inverse_transform(y_pred_dt5_scaled.reshape(-1, 1)).ravel()

rmse_dt5 = root_mean_squared_error(y_test_orig, y_pred_dt5)
r2_value_dt5 = r2_score(y_test_orig, y_pred_dt5)
print(f"Decision Tree (depth=5) RMSE: {rmse_dt5:.2f}, R²: {r2_value_dt5:.2f}")

Decision Tree (depth=5) RMSE: 424.83, R²: 0.70

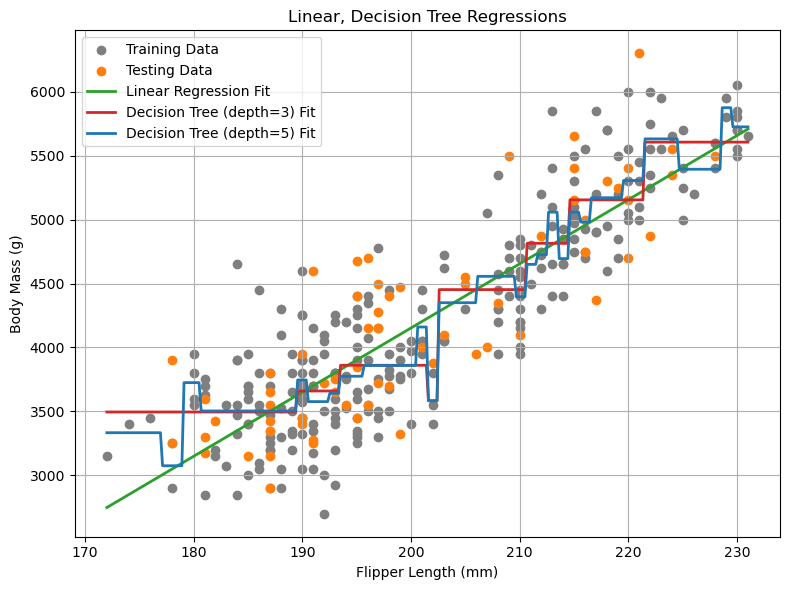

# using all predictions to plot regression curve

y_range_dt3_scaled = dt3_model.predict(X_range_scaled).flatten()
y_range_dt3 = scaler_y.inverse_transform(y_range_dt3_scaled.reshape(-1, 1)).ravel()

y_range_dt5_scaled = dt5_model.predict(X_range_scaled).flatten()
y_range_dt5 = scaler_y.inverse_transform(y_range_dt5_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_dt3, color='tab:red',  linewidth=2, label="Decision Tree (depth=3) Fit")
plt.plot(X_range, y_range_dt5, color='tab:blue', linewidth=2, label="Decision Tree (depth=5) Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear, Decision Tree Regressions")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-decision-tree-35.png")

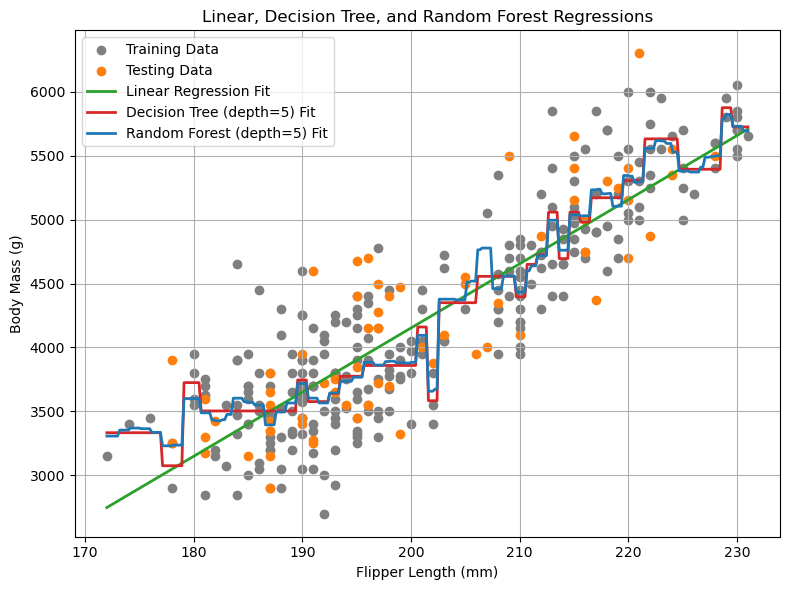

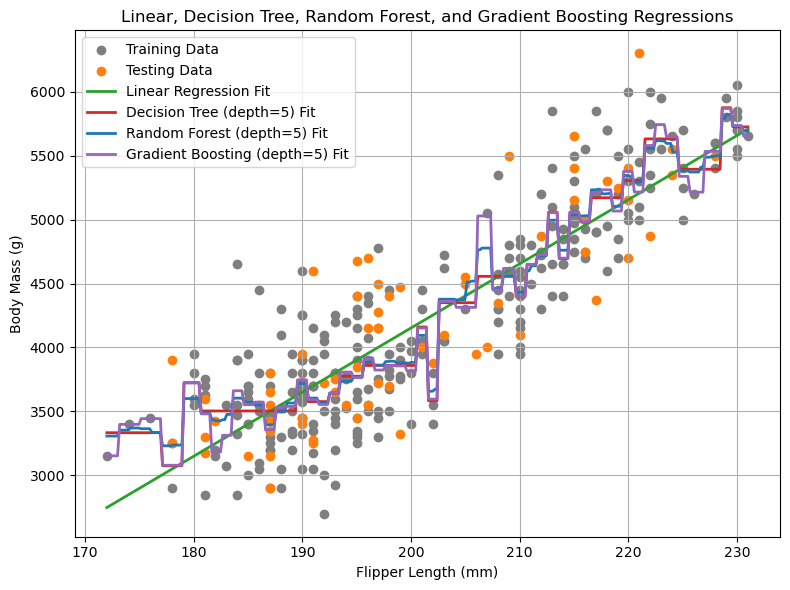

Random Forest

from sklearn.ensemble import RandomForestRegressor

rf5_model = RandomForestRegressor(n_estimators=100, max_depth=5, random_state=123)
rf5_model.fit(X_train_scaled, y_train_scaled)

y_pred_rf5_scaled = rf5_model.predict(X_test_scaled)
y_pred_rf5 = scaler_y.inverse_transform(y_pred_rf5_scaled.reshape(-1, 1)).ravel()

rmse_rf5 = root_mean_squared_error(y_test_orig, y_pred_rf5)
r2_value_rf5 = r2_score(y_test_orig, y_pred_rf5)
print(f"Random Forest (depth=5) RMSE: {rmse_rf5:.2f}, R²: {r2_value_rf5:.2f}")

Random Forest (depth=5) RMSE: 425.48, R²: 0.70

# using all predictions to plot regression curve

y_range_rf5_scaled = rf5_model.predict(X_range_scaled).flatten()
y_range_rf5 = scaler_y.inverse_transform(y_range_rf5_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_dt5, color='tab:red', linewidth=2, label="Decision Tree (depth=5) Fit")
plt.plot(X_range, y_range_rf5, color='tab:blue', linewidth=2, label="Random Forest (depth=5) Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear, Decision Tree, and Random Forest Regressions")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-dt5-rf5.png")

Gradient Boosting

from sklearn.ensemble import GradientBoostingRegressor

gb5_model = GradientBoostingRegressor(n_estimators=100, learning_rate=0.1, max_depth=5, random_state=123)
gb5_model.fit(X_train_scaled, y_train_scaled)

y_pred_gb5_scaled = gb5_model.predict(X_test_scaled)
y_pred_gb5 = scaler_y.inverse_transform(y_pred_gb5_scaled.reshape(-1, 1)).ravel()

rmse_gb5 = root_mean_squared_error(y_test_orig, y_pred_gb5)
r2_value_gb5 = r2_score(y_test_orig, y_pred_gb5)
print(f"Gradient Boosting (depth=5) RMSE: {rmse_gb5:.2f}, R²: {r2_value_gb5:.2f}")

Gradient Boosting (depth=5) RMSE: 441.01, R²: 0.68

# using all predictions to plot regression curve

y_range_gb5_scaled = gb5_model.predict(X_range_scaled).flatten()
y_range_gb5 = scaler_y.inverse_transform(y_range_gb5_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_dt5, color='tab:red', linewidth=2, label="Decision Tree (depth=5) Fit")
plt.plot(X_range, y_range_rf5, color='tab:blue', linewidth=2, label="Random Forest (depth=5) Fit")
plt.plot(X_range, y_range_gb5, color='tab:purple', linewidth=2, label="Gradient Boosting (depth=5) Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear, Decision Tree, Random Forest, and Gradient Boosting Regressions")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-dt5-rf5-gb5.png")

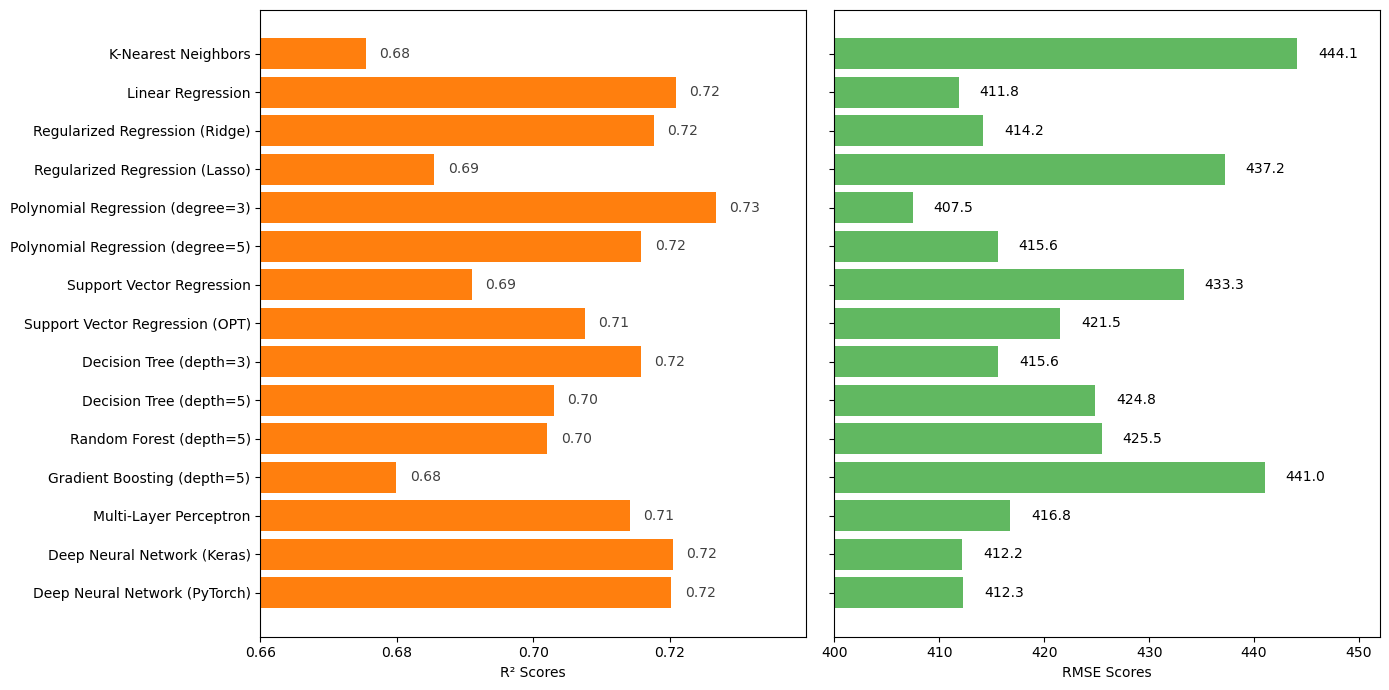

print("\nComparison of RMSE and R² values:")
print(f"Linear Regression           RMSE: {rmse_linear:.2f}, R²: {r2_value_linear:.2f}")
print(f"Decision Tree     (depth=5) RMSE: {rmse_dt5:.2f}, R²: {r2_value_dt5:.2f}")
print(f"Random Forest     (depth=5) RMSE: {rmse_rf5:.2f}, R²: {r2_value_rf5:.2f}")
print(f"Gradient Boosting (depth=5) RMSE: {rmse_gb5:.2f}, R²: {r2_value_gb5:.2f}")

Comparison of RMSE and R² values:
Linear Regression           RMSE: 411.85, R²: 0.72
Decision Tree     (depth=5) RMSE: 424.83, R²: 0.70
Random Forest     (depth=5) RMSE: 425.48, R²: 0.70
Gradient Boosting (depth=5) RMSE: 441.01, R²: 0.68

4.6 Multi-Layer Perceptron (Scikit-Learn)

from sklearn.neural_network import MLPRegressor

mlp_model = MLPRegressor(hidden_layer_sizes=(32, 16, 8), activation='relu',
                         solver='adam', max_iter=5000, random_state=123)
mlp_model.fit(X_train_scaled, y_train_scaled)

y_pred_mlp_scaled = mlp_model.predict(X_test_scaled)
y_pred_mlp = scaler_y.inverse_transform(y_pred_mlp_scaled.reshape(-1, 1)).ravel()

rmse_mlp = root_mean_squared_error(y_test_orig, y_pred_mlp)
r2_value_mlp = r2_score(y_test_orig, y_pred_mlp)
print(f"Multi-Layer Perceptron RMSE: {rmse_mlp:.2f}, R²: {r2_value_mlp:.2f}")

Multi-Layer Perceptron RMSE: 416.78, R²: 0.71

# using all predictions to plot regression curve

y_range_mlp_scaled = mlp_model.predict(X_range_scaled).flatten()
y_range_mlp = scaler_y.inverse_transform(y_range_mlp_scaled.reshape(-1, 1)).ravel()

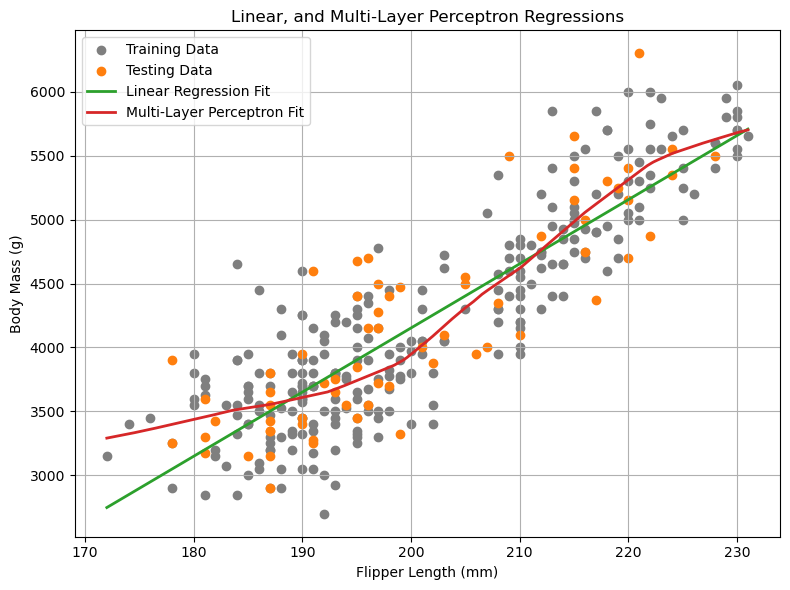

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_mlp, color='tab:red', linewidth=2, label="Multi-Layer Perceptron Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear, and Multi-Layer Perceptron Regressions")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-mlp.png")

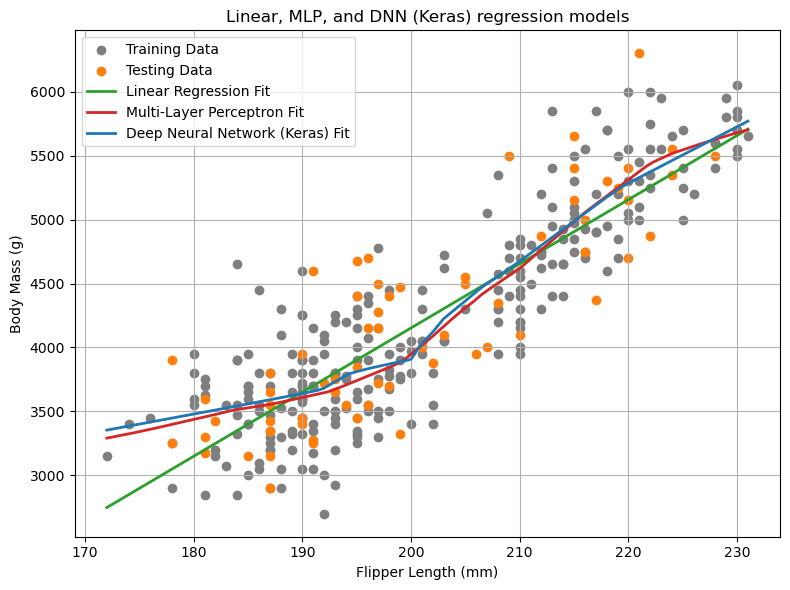

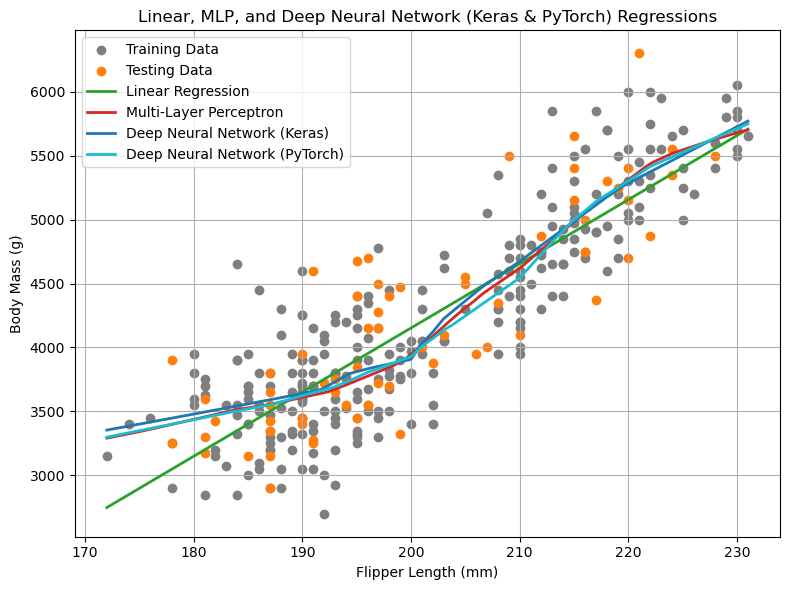

Deep Neural Network (Keras)

import tensorflow as tf
from tensorflow import keras

inputs = keras.Input(shape=(1,))
x = keras.layers.Dense(32, activation='relu')(inputs)
x = keras.layers.Dense(16, activation='relu')(x)
x = keras.layers.Dense(8, activation='relu')(x)
outputs = keras.layers.Dense(1)(x)

dnn_keras_model = keras.Model(inputs=inputs, outputs=outputs)
dnn_keras_model.compile(optimizer='adam', loss='mse')

history = dnn_keras_model.fit(X_train_scaled, y_train_scaled, epochs=200,
                              batch_size=8, verbose=1, validation_split=0.2)

y_pred_dnn_keras_scaled = dnn_keras_model.predict(X_test_scaled)
y_pred_dnn_keras = scaler_y.inverse_transform(y_pred_dnn_keras_scaled.reshape(-1, 1)).ravel()

rmse_dnn_keras = root_mean_squared_error(y_test_orig, y_pred_dnn_keras)
r2_value_dnn_keras = r2_score(y_test_orig, y_pred_dnn_keras)
print(f"Deep Neural Network (Keras) RMSE: {rmse_dnn_keras:.2f}, R²: {r2_value_dnn_keras:.2f}")

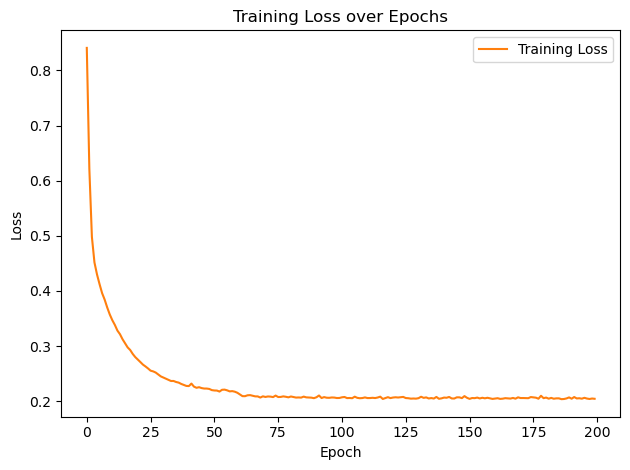

Epoch 1/200
27/27 [==============================] - 1s 7ms/step - loss: 0.8408 - val_loss: 0.7639
Epoch 2/200
27/27 [==============================] - 0s 1ms/step - loss: 0.6215 - val_loss: 0.6462
Epoch 3/200
27/27 [==============================] - 0s 1ms/step - loss: 0.4980 - val_loss: 0.5959
Epoch 4/200
27/27 [==============================] - 0s 1ms/step - loss: 0.4518 - val_loss: 0.5711
Epoch 5/200
27/27 [==============================] - 0s 1ms/step - loss: 0.4300 - val_loss: 0.5416
Epoch 6/200
27/27 [==============================] - 0s 1ms/step - loss: 0.4123 - val_loss: 0.5179
Epoch 7/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3960 - val_loss: 0.4950
Epoch 8/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3843 - val_loss: 0.4745
Epoch 9/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3701 - val_loss: 0.4572
Epoch 10/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3574 - val_loss: 0.4399
Epoch 11/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3470 - val_loss: 0.4240
Epoch 12/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3384 - val_loss: 0.4107
Epoch 13/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3282 - val_loss: 0.3976
Epoch 14/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3216 - val_loss: 0.3849
Epoch 15/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3125 - val_loss: 0.3683
Epoch 16/200
27/27 [==============================] - 0s 1ms/step - loss: 0.3051 - val_loss: 0.3610
Epoch 17/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2977 - val_loss: 0.3502
Epoch 18/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2930 - val_loss: 0.3424
Epoch 19/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2858 - val_loss: 0.3338
Epoch 20/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2800 - val_loss: 0.3246
Epoch 21/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2756 - val_loss: 0.3172
Epoch 22/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2711 - val_loss: 0.3081
Epoch 23/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2665 - val_loss: 0.3038
Epoch 24/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2631 - val_loss: 0.2966
Epoch 25/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2595 - val_loss: 0.2909
Epoch 26/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2555 - val_loss: 0.2887
Epoch 27/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2542 - val_loss: 0.2836
Epoch 28/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2521 - val_loss: 0.2783
Epoch 29/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2485 - val_loss: 0.2720
Epoch 30/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2451 - val_loss: 0.2692
Epoch 31/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2430 - val_loss: 0.2655
Epoch 32/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2409 - val_loss: 0.2621
Epoch 33/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2388 - val_loss: 0.2565
Epoch 34/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2367 - val_loss: 0.2536
Epoch 35/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2368 - val_loss: 0.2559
Epoch 36/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2349 - val_loss: 0.2531
Epoch 37/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2338 - val_loss: 0.2519
Epoch 38/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2314 - val_loss: 0.2455
Epoch 39/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2297 - val_loss: 0.2488
Epoch 40/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2278 - val_loss: 0.2419
Epoch 41/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2275 - val_loss: 0.2484
Epoch 42/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2320 - val_loss: 0.2371
Epoch 43/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2265 - val_loss: 0.2350
Epoch 44/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2244 - val_loss: 0.2398
Epoch 45/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2255 - val_loss: 0.2335
Epoch 46/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2239 - val_loss: 0.2321
Epoch 47/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2230 - val_loss: 0.2314
Epoch 48/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2230 - val_loss: 0.2313
Epoch 49/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2223 - val_loss: 0.2292
Epoch 50/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2202 - val_loss: 0.2297
Epoch 51/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2195 - val_loss: 0.2295
Epoch 52/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2194 - val_loss: 0.2285
Epoch 53/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2176 - val_loss: 0.2242
Epoch 54/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2208 - val_loss: 0.2311
Epoch 55/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2211 - val_loss: 0.2251
Epoch 56/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2198 - val_loss: 0.2217
Epoch 57/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2179 - val_loss: 0.2243
Epoch 58/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2184 - val_loss: 0.2219
Epoch 59/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2173 - val_loss: 0.2193
Epoch 60/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2154 - val_loss: 0.2168
Epoch 61/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2124 - val_loss: 0.2103
Epoch 62/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2093 - val_loss: 0.2038
Epoch 63/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2092 - val_loss: 0.2108
Epoch 64/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2108 - val_loss: 0.2018
Epoch 65/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2111 - val_loss: 0.2081
Epoch 66/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2100 - val_loss: 0.2108
Epoch 67/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2088 - val_loss: 0.2074
Epoch 68/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2088 - val_loss: 0.2092
Epoch 69/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2067 - val_loss: 0.2102
Epoch 70/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2089 - val_loss: 0.2049
Epoch 71/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2078 - val_loss: 0.2096
Epoch 72/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2087 - val_loss: 0.1994
Epoch 73/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2084 - val_loss: 0.2075
Epoch 74/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2076 - val_loss: 0.2104
Epoch 75/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2103 - val_loss: 0.2038
Epoch 76/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2077 - val_loss: 0.2075
Epoch 77/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2078 - val_loss: 0.2087
Epoch 78/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2088 - val_loss: 0.2052
Epoch 79/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2081 - val_loss: 0.2084
Epoch 80/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2071 - val_loss: 0.2074
Epoch 81/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2086 - val_loss: 0.2042
Epoch 82/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2076 - val_loss: 0.2117
Epoch 83/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2067 - val_loss: 0.2100
Epoch 84/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2069 - val_loss: 0.2033
Epoch 85/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2066 - val_loss: 0.2103
Epoch 86/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2084 - val_loss: 0.2115
Epoch 87/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2070 - val_loss: 0.2100
Epoch 88/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2067 - val_loss: 0.2096
Epoch 89/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2065 - val_loss: 0.2134
Epoch 90/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2056 - val_loss: 0.2057
Epoch 91/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2072 - val_loss: 0.2078
Epoch 92/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2104 - val_loss: 0.2089
Epoch 93/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2087
Epoch 94/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2075 - val_loss: 0.2134
Epoch 95/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2064 - val_loss: 0.2064
Epoch 96/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2062 - val_loss: 0.2090
Epoch 97/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2068 - val_loss: 0.2074
Epoch 98/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2067 - val_loss: 0.2147
Epoch 99/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2086
Epoch 100/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2060 - val_loss: 0.2093
Epoch 101/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2071 - val_loss: 0.2135
Epoch 102/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2077 - val_loss: 0.2075
Epoch 103/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2057 - val_loss: 0.2107
Epoch 104/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2059 - val_loss: 0.2089
Epoch 105/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2055 - val_loss: 0.2056
Epoch 106/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2083 - val_loss: 0.2062
Epoch 107/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2061 - val_loss: 0.2092
Epoch 108/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2055 - val_loss: 0.2071
Epoch 109/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2087
Epoch 110/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2069 - val_loss: 0.2129
Epoch 111/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2123
Epoch 112/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2095
Epoch 113/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2062 - val_loss: 0.2081
Epoch 114/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2090
Epoch 115/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2068 - val_loss: 0.2149
Epoch 116/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2083 - val_loss: 0.2031
Epoch 117/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2041 - val_loss: 0.2125
Epoch 118/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2057 - val_loss: 0.2099
Epoch 119/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2074 - val_loss: 0.2158
Epoch 120/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2057 - val_loss: 0.2084
Epoch 121/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2067 - val_loss: 0.2114
Epoch 122/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2072 - val_loss: 0.2050
Epoch 123/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2068 - val_loss: 0.2056
Epoch 124/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2073 - val_loss: 0.2039
Epoch 125/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2078 - val_loss: 0.2157
Epoch 126/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2089
Epoch 127/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2055 - val_loss: 0.2065
Epoch 128/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2047 - val_loss: 0.2076
Epoch 129/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2050 - val_loss: 0.2099
Epoch 130/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2047 - val_loss: 0.2087
Epoch 131/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2056 - val_loss: 0.2123
Epoch 132/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2082 - val_loss: 0.2123
Epoch 133/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2062 - val_loss: 0.2138
Epoch 134/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2070 - val_loss: 0.2075
Epoch 135/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2050 - val_loss: 0.2118
Epoch 136/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2058 - val_loss: 0.2100
Epoch 137/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2049 - val_loss: 0.2063
Epoch 138/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2078 - val_loss: 0.2108
Epoch 139/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2045 - val_loss: 0.2085
Epoch 140/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2052 - val_loss: 0.2122
Epoch 141/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2066 - val_loss: 0.2129
Epoch 142/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2063 - val_loss: 0.2094
Epoch 143/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2078 - val_loss: 0.2077
Epoch 144/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2051 - val_loss: 0.2115
Epoch 145/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2049 - val_loss: 0.2127
Epoch 146/200
27/27 [==============================] - 0s 3ms/step - loss: 0.2071 - val_loss: 0.2078
Epoch 147/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2071 - val_loss: 0.2087
Epoch 148/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2057 - val_loss: 0.2101
Epoch 149/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2093 - val_loss: 0.2105
Epoch 150/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2062 - val_loss: 0.2102
Epoch 151/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2043 - val_loss: 0.2071
Epoch 152/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2059 - val_loss: 0.2054
Epoch 153/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2056 - val_loss: 0.2145
Epoch 154/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2066 - val_loss: 0.2084
Epoch 155/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2051 - val_loss: 0.2118
Epoch 156/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2063 - val_loss: 0.2070
Epoch 157/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2053 - val_loss: 0.2043
Epoch 158/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2063 - val_loss: 0.2086
Epoch 159/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2052 - val_loss: 0.2101
Epoch 160/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2042 - val_loss: 0.2099
Epoch 161/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2050 - val_loss: 0.2060
Epoch 162/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2055 - val_loss: 0.2071
Epoch 163/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2043 - val_loss: 0.2092
Epoch 164/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2047 - val_loss: 0.2088
Epoch 165/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2056 - val_loss: 0.2100
Epoch 166/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2051 - val_loss: 0.2136
Epoch 167/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2048 - val_loss: 0.2086
Epoch 168/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2060 - val_loss: 0.2031
Epoch 169/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2047 - val_loss: 0.2081
Epoch 170/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2071 - val_loss: 0.2112
Epoch 171/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2035
Epoch 172/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2058 - val_loss: 0.2109
Epoch 173/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2057 - val_loss: 0.2063
Epoch 174/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2055 - val_loss: 0.2162
Epoch 175/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2076 - val_loss: 0.2035
Epoch 176/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2071 - val_loss: 0.2098
Epoch 177/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2065 - val_loss: 0.2097
Epoch 178/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2046 - val_loss: 0.2049
Epoch 179/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2099 - val_loss: 0.2062
Epoch 180/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2056 - val_loss: 0.2117
Epoch 181/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2067 - val_loss: 0.2052
Epoch 182/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2047 - val_loss: 0.2171
Epoch 183/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2061 - val_loss: 0.2082
Epoch 184/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2046 - val_loss: 0.2129
Epoch 185/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2052 - val_loss: 0.2111
Epoch 186/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2053 - val_loss: 0.2102
Epoch 187/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2038 - val_loss: 0.2074
Epoch 188/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2041 - val_loss: 0.2076
Epoch 189/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2051 - val_loss: 0.2112
Epoch 190/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2070 - val_loss: 0.2146
Epoch 191/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2046 - val_loss: 0.2007
Epoch 192/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2076 - val_loss: 0.2096
Epoch 193/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2051 - val_loss: 0.2105
Epoch 194/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2054 - val_loss: 0.2053
Epoch 195/200
27/27 [==============================] - 0s 2ms/step - loss: 0.2047 - val_loss: 0.2114
Epoch 196/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2062 - val_loss: 0.2086
Epoch 197/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2049 - val_loss: 0.2079
Epoch 198/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2041 - val_loss: 0.2084
Epoch 199/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2049 - val_loss: 0.2057
Epoch 200/200
27/27 [==============================] - 0s 1ms/step - loss: 0.2045 - val_loss: 0.2108
3/3 [==============================] - 0s 1ms/step
Deep Neural Network (Keras) RMSE: 412.15, R²: 0.72

sns.lineplot(x=history.epoch, y=history.history['loss'], c="tab:orange", label='Training Loss')

plt.xlabel("Epoch")
plt.ylabel("Loss")
plt.title("Training Loss over Epochs")
plt.legend()
plt.tight_layout()
# plt.show()
# plt.savefig("./4-dnn-loss")

# using all predictions to plot regression curve

y_range_dnn_keras_scaled = dnn_keras_model.predict(X_range_scaled).flatten()
y_range_dnn_keras = scaler_y.inverse_transform(y_range_dnn_keras_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression Fit")
plt.plot(X_range, y_range_mlp, color='tab:red', linewidth=2, label="Multi-Layer Perceptron Fit")
plt.plot(X_range, y_range_dnn_keras, color='tab:blue', linewidth=2, label="Deep Neural Network (Keras) Fit")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear, MLP, and DNN (Keras) regression models")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./5-regression-predictive-curve-linear-mlp-keras.png")

10/10 [==============================] - 0s 776us/step

Deep Neural Network (PyTorch)

import torch
import torch.nn as nn

X = penguins_regression[["flipper_length_mm"]].values.astype(np.float32)
y = penguins_regression["body_mass_g"].values.astype(np.float32).reshape(-1, 1)

X_scaled = scaler_X.fit_transform(X)
y_scaled = scaler_y.fit_transform(y)

X_train, X_test, y_train, y_test = train_test_split(X_scaled, y_scaled, test_size=0.2, random_state=123)

# convert to torch tensors
X_train_t = torch.tensor(X_train)
y_train_t = torch.tensor(y_train)
X_test_t = torch.tensor(X_test)
y_test_t = torch.tensor(y_test)

# define a DNN model using PyTorch

class DNNRegressor(nn.Module):
    def __init__(self):
        super().__init__()
        self.net = nn.Sequential(
            nn.Linear(1, 32),
            nn.ReLU(),
            nn.Linear(32, 16),
            nn.ReLU(),
            nn.Linear(16, 8),
            nn.ReLU(),
            nn.Linear(8, 1)
        )
    def forward(self, x):
        return self.net(x)

dnn_pytorch_model = DNNRegressor()

# loss and optimizer
criterion = nn.MSELoss()
optimizer = torch.optim.Adam(dnn_pytorch_model.parameters(), lr=0.001)

# training loop

epochs = 1000
for epoch in range(epochs):
    dnn_pytorch_model.train()
    optimizer.zero_grad()
    outputs = dnn_pytorch_model(X_train_t)
    loss = criterion(outputs, y_train_t)
    loss.backward()
    optimizer.step()
    if (epoch+1) % 100 == 0:
        print(f"Epoch {epoch+1}/{epochs}, Loss: {loss.item():.4f}")

Epoch 100/1000, Loss: 0.3742
Epoch 200/1000, Loss: 0.2037
Epoch 300/1000, Loss: 0.2023
Epoch 400/1000, Loss: 0.2016
Epoch 500/1000, Loss: 0.2012
Epoch 600/1000, Loss: 0.2010
Epoch 700/1000, Loss: 0.2006
Epoch 800/1000, Loss: 0.2001
Epoch 900/1000, Loss: 0.2000
Epoch 1000/1000, Loss: 0.1998

# evaluation

dnn_pytorch_model.eval()
with torch.no_grad():
    y_pred_t = dnn_pytorch_model(X_test_t).numpy()
y_pred_dnn_pytorch = scaler_y.inverse_transform(y_pred_t)

# y_test_orig = scaler_y.inverse_transform(y_test)

rmse_dnn_pytorch = root_mean_squared_error(y_test_orig, y_pred_dnn_pytorch)
r2_value_dnn_pytorch = r2_score(y_test_orig, y_pred_dnn_pytorch)
print(f"Deep Neural Network (PyTorch) RMSE: {rmse_dnn_pytorch:.2f}, R²: {r2_value_dnn_pytorch:.2f}")

Deep Neural Network (PyTorch) RMSE: 412.30, R²: 0.72

# using all predictions to plot regression curve

y_range_dnn_keras_scaled = dnn_keras_model.predict(X_range_scaled).flatten()
y_range_dnn_keras = scaler_y.inverse_transform(y_range_dnn_keras_scaled.reshape(-1, 1)).ravel()

X_range = np.linspace(X.min(), X.max(), 300).reshape(-1, 1).astype(np.float32)
X_range_scaled = scaler_X.transform(X_range)
X_range_t = torch.tensor(X_range_scaled)

with torch.no_grad():
    y_range_dnn_pytorch_scaled = dnn_pytorch_model(X_range_t).numpy()
y_range_dnn_pytorch = scaler_y.inverse_transform(y_range_dnn_pytorch_scaled.reshape(-1, 1)).ravel()

plt.figure(figsize=(8, 6))

plt.scatter(X_train_orig, y_train_orig, color="tab:gray", label="Training Data", alpha=1.0)
plt.scatter(X_test_orig, y_test_orig, color="tab:orange", label="Testing Data", alpha=1.0)

plt.plot(X_range, y_range_linear, color='tab:green', linewidth=2, label="Linear Regression")
plt.plot(X_range, y_range_mlp, color='tab:red', linewidth=2, label="Multi-Layer Perceptron")
plt.plot(X_range, y_range_dnn_keras, color='tab:blue', linewidth=2, label="Deep Neural Network (Keras)")
plt.plot(X_range, y_range_dnn_pytorch, color='tab:cyan', linewidth=2, label="Deep Neural Network (PyTorch)")

plt.xlabel("Flipper Length (mm)")
plt.ylabel("Body Mass (g)")
plt.title("Linear, MLP, and Deep Neural Network (Keras & PyTorch) Regressions")
plt.legend(loc="upper left")
plt.grid(True)
plt.tight_layout()
plt.show()
# plt.savefig("./6-regression-predictive-curve-linear-mlp-keras-pytorch.png")

10/10 [==============================] - 0s 665us/step

5. Comparison of Trained Models

print("\nComparison of RMSE and R² values:")

print(f"K-Nearest Neighbors              RMSE: {rmse_knn:.2f},    R²: {r2_value_knn:.2f}")

print(f"Linear Regression                RMSE: {rmse_linear:.2f},    R²: {r2_value_linear:.2f}")
print(f"Regularized Regression (Ridge)   RMSE: {rmse_ridge:.2f},    R²: {r2_value_ridge:.2f}")
print(f"Regularized Regression (Lasso)   RMSE: {rmse_lasso:.2f},    R²: {r2_value_lasso:.2f}")

print(f"Polynomial Regression (degree=3) RMSE: {rmse_poly3:.2f},    R²: {r2_value_poly3:.2f}")
print(f"Polynomial Regression (degree=5) RMSE: {rmse_poly5:.2f},    R²: {r2_value_poly5:.2f}")

print(f"Support Vector Regression        RMSE: {rmse_svr:.2f},    R²: {r2_value_svr:.2f}")
print(f"Support Vector Regression (OPT)  RMSE: {rmse_svr_opt:.2f},    R²: {r2_value_svr_opt:.2f}")

print(f"Decision Tree (depth=3)          RMSE: {rmse_dt3:.2f},    R²: {r2_value_dt3:.2f}")
print(f"Decision Tree (depth=5)          RMSE: {rmse_dt5:.2f},    R²: {r2_value_dt5:.2f}")
print(f"Random Forest (depth=5)          RMSE: {rmse_rf5:.2f},    R²: {r2_value_rf5:.2f}")
print(f"Gradient Boosting (depth=5)      RMSE: {rmse_gb5:.2f},    R²: {r2_value_gb5:.2f}")

print(f"Multi-Layer Perceptron           RMSE: {rmse_mlp:.2f},    R²: {r2_value_mlp:.2f}")
print(f"Deep Neural Network (Keras)      RMSE: {rmse_dnn_keras:.2f},    R²: {r2_value_dnn_keras:.2f}")
print(f"Deep Neural Network (PyTorch)    RMSE: {rmse_dnn_pytorch:.2f},    R²: {r2_value_dnn_pytorch:.2f}")

Comparison of RMSE and R² values:
K-Nearest Neighbors              RMSE: 444.09,    R²: 0.68
Linear Regression                RMSE: 411.85,    R²: 0.72
Regularized Regression (Ridge)   RMSE: 414.18,    R²: 0.72
Regularized Regression (Lasso)   RMSE: 437.19,    R²: 0.69
Polynomial Regression (degree=3) RMSE: 407.47,    R²: 0.73
Polynomial Regression (degree=5) RMSE: 415.55,    R²: 0.72
Support Vector Regression        RMSE: 433.30,    R²: 0.69
Support Vector Regression (OPT)  RMSE: 421.54,    R²: 0.71
Decision Tree (depth=3)          RMSE: 415.62,    R²: 0.72
Decision Tree (depth=5)          RMSE: 424.83,    R²: 0.70
Random Forest (depth=5)          RMSE: 425.48,    R²: 0.70
Gradient Boosting (depth=5)      RMSE: 441.01,    R²: 0.68
Multi-Layer Perceptron           RMSE: 416.78,    R²: 0.71
Deep Neural Network (Keras)      RMSE: 412.15,    R²: 0.72
Deep Neural Network (PyTorch)    RMSE: 412.30,    R²: 0.72

model_names = ["Deep Neural Network (PyTorch)", "Deep Neural Network (Keras)", "Multi-Layer Perceptron",
               "Gradient Boosting (depth=5)", "Random Forest (depth=5)", "Decision Tree (depth=5)", "Decision Tree (depth=3)",
               "Support Vector Regression (OPT)", "Support Vector Regression",
               "Polynomial Regression (degree=5)", "Polynomial Regression (degree=3)",
               "Regularized Regression (Lasso)", "Regularized Regression (Ridge)", "Linear Regression",
               "K-Nearest Neighbors"]
rmse_scores = [rmse_dnn_pytorch, rmse_dnn_keras, rmse_mlp, rmse_gb5, rmse_rf5, rmse_dt5, rmse_dt3,
               rmse_svr_opt, rmse_svr, rmse_poly5, rmse_poly3, rmse_lasso, rmse_ridge, rmse_linear, rmse_knn]
r2_scores = [r2_value_dnn_pytorch, r2_value_dnn_keras, r2_value_mlp, r2_value_gb5, r2_value_rf5,
             r2_value_dt5, r2_value_dt3, r2_value_svr_opt, r2_value_svr, r2_value_poly5, r2_value_poly3,
             r2_value_lasso, r2_value_ridge, r2_value_linear, r2_value_knn]

fig, axes = plt.subplots(1, 2, figsize=(14, 7), sharey=True)

# R² scores
axes[0].barh(model_names, r2_scores, color='tab:orange')
axes[0].set_xlabel("R² Scores")
axes[0].set_xlim(0.66, 0.74)
axes[0].set_xticks(np.arange(0.66, 0.74, 0.02))

for i, score in enumerate(r2_scores):
    axes[0].text(score + 0.002, i, f'{score:.2f}', va='center', alpha=0.75)

# RMSE scores
axes[1].barh(model_names, rmse_scores, color='tab:green', alpha=0.75)
axes[1].set_xlabel("RMSE Scores")
axes[1].set_xlim(400, 452)
axes[1].set_xticks(np.arange(400, 452, 10))

for i, score in enumerate(rmse_scores):
    axes[1].text(score + 2, i, f'{score:.1f}', va='center')

plt.tight_layout()
plt.show()
# plt.savefig("./6-rmse-r2-scores_alla.png")
